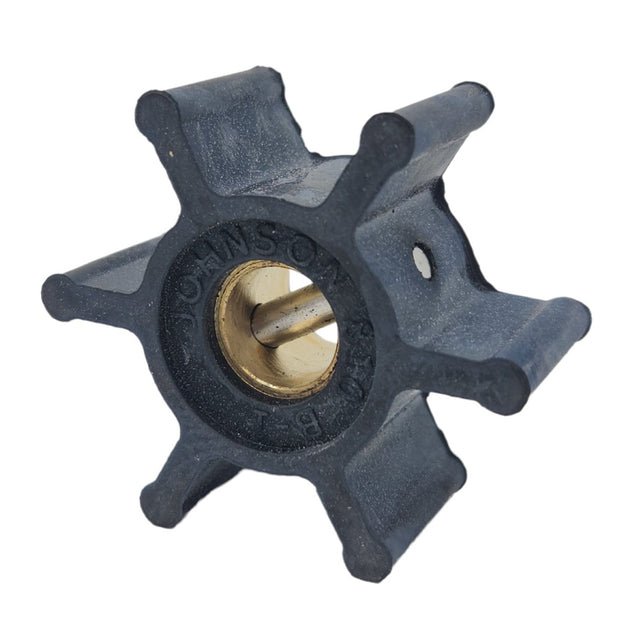

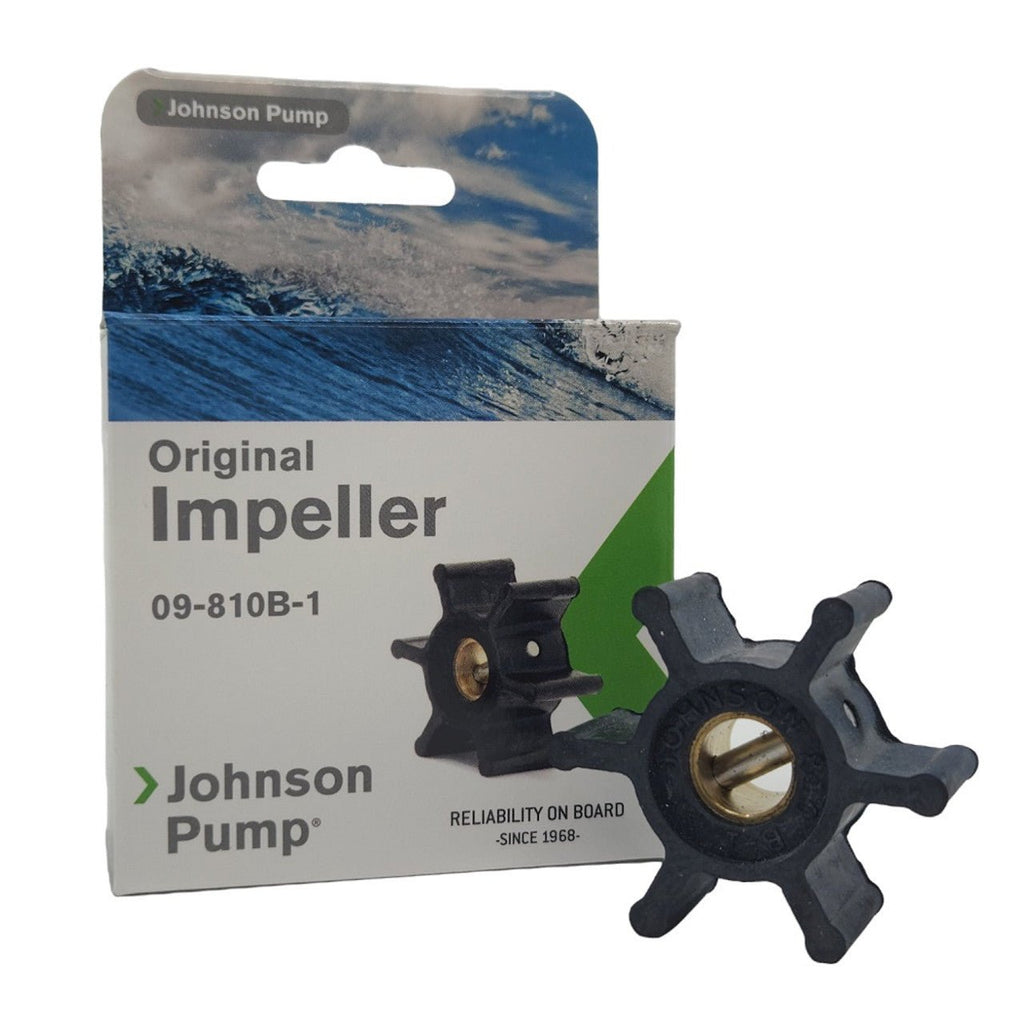

JOHNSON IMPELLER 09-810B

SPX Johnson - 09-810B - Impeller

SPX FLOW engineers Johnson Pump impellers for outstanding performance!

SPX FLOW supplies engine cooling pumps to the world’s leading marine motor manufacturers, not just because of our renowned pumps; but also because of the heart of an engine cooling pump: the impeller!

Specifications:

• Pump: F4
• Material: MC97/EPDM
• Outer Diameter: 50.8mm (2.00")
• Inner Diameter: 12.0mm (0.47")
• Width: 22.0mm (0.87")
• Replaces Jabsco: 18653-001n Nanni N434013 and Vetus STM8076

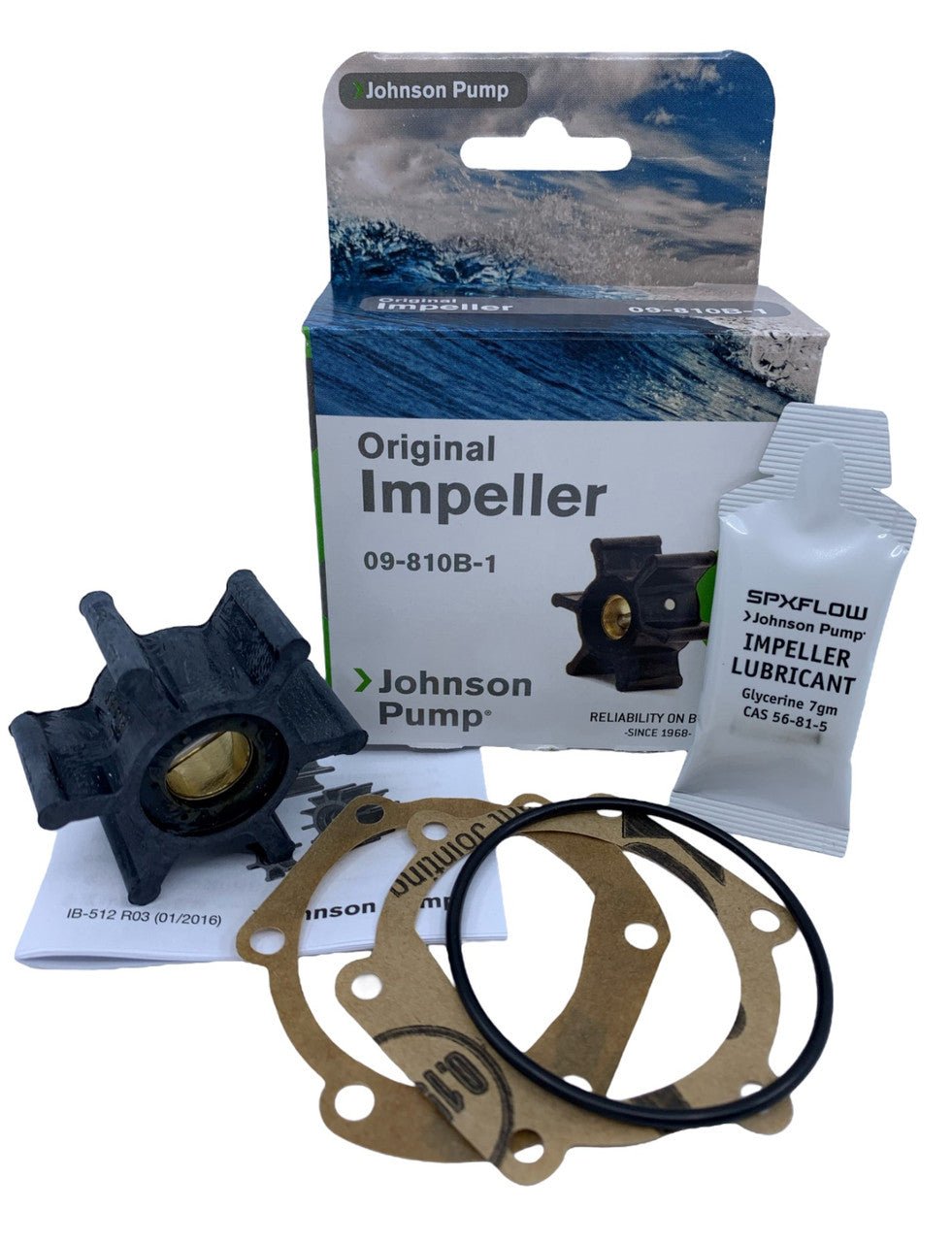

• Comes with all gaskets and lube required for installation

Features:

With SPX FLOW Johnson Pump Marine Original Impellers you get:

• Ensures correct cooling flow
• Stable pressure delivery over time
• Significantly longer service life
• Excellent self-priming capability
• Ensures sufficient cooling directly at start up
• Our impellers are manufactured to strict tolerances for optimal functionality unique MC97 rubber compound in many of our impellers
• Correct impeller dimensions
• Optimized to provide maximum life, especially for applications where the end user doesn’t run the engine on a regular basis

Replaces Yanmar part number: 128397-42200, 128990-42200, 128990-42570

Suits Yanmar engines:

2GM20-YEU, 2GM20C-YEU, 2GM20F-YEU, 2GM20FC-YEU 3GM30-YEU, 3GM30C-YEU 3GM30F-YEU, 3GM30FC-YEU 2YM15 3YM20 3YM27A, 3YM30R 3YM30

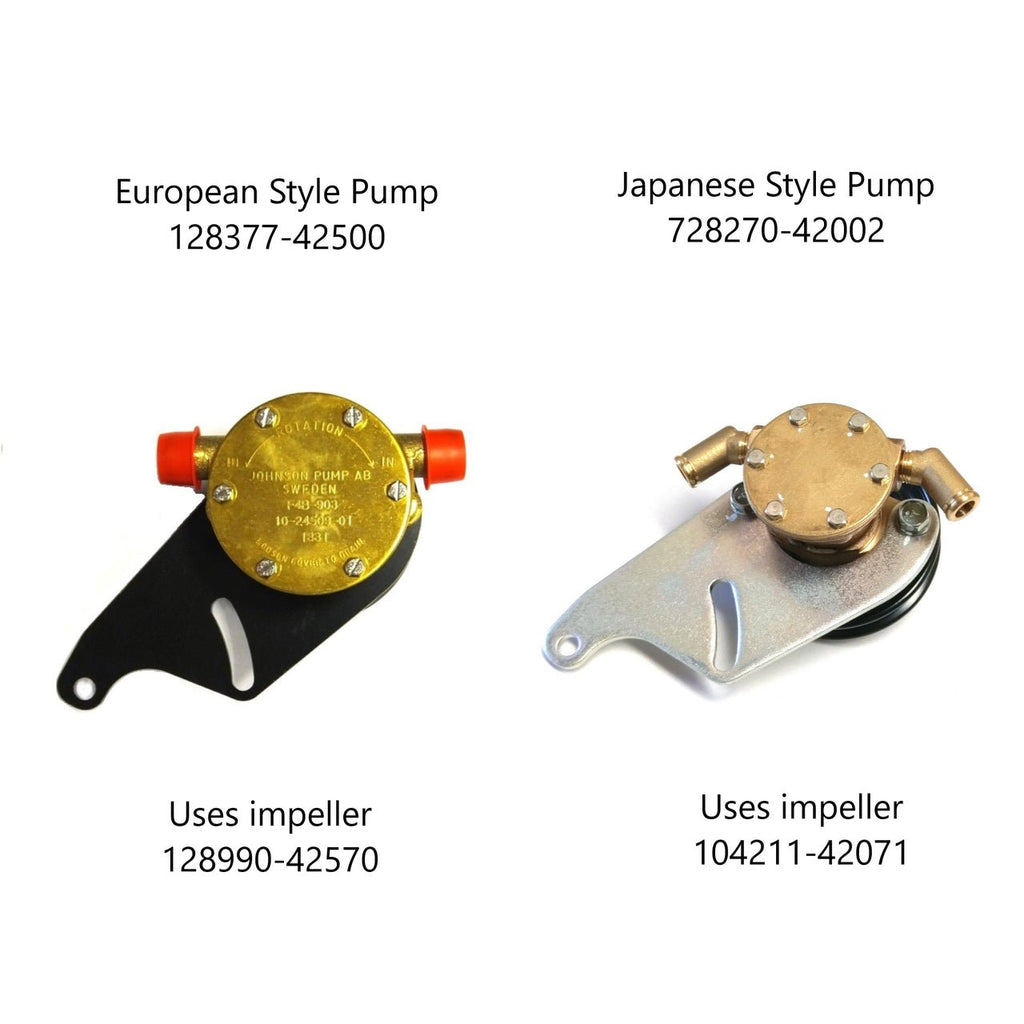

Please note: This impeller suits 2GM & 3GM models with European style seawater pump 128377-42500 (see image 3). These engines will have an 'E' in their engine serial number. If you have a 2GM / 3GM engine with the Japanese seawater pump 728270-42002 use impeller 104211-42071.

Nanni Diesel N434013 Seawater Impeller Genuine SPX Johnson 09-810B

Replaces Nanni Diesel part: N434013, 434013, 907434013

Suits Nanni Diesel engines:

N2.10, N2.14, N3.21, 2.45HE, 2.50HE, 2.60HE, 3.75HE, 3.90H, 3.90HE, 4.110H, QMF6M

Kohler GM20852 Seawater Impeller Genuine SPX Johnson 09-810B-1

Replaces Kohler part number: GM20852

Suits Kohler petrol generators:

3.5EFOZ, 4EOZ
