Boat Systems covers everything between the helm and the propeller: the cables, controls, steering and tankage that make a hull drivable. Off Grid Superstore stocks 537 boat systems products in Australia.

What's in the range

Steering is the largest section at 183 products, spanning mechanical and hydraulic systems, helms, cables and cylinders. Engine Controls follows with 161 single and twin-lever controls, control cables and mounting kits, including actuators such as the Extra Short Length 270mm Actuator.

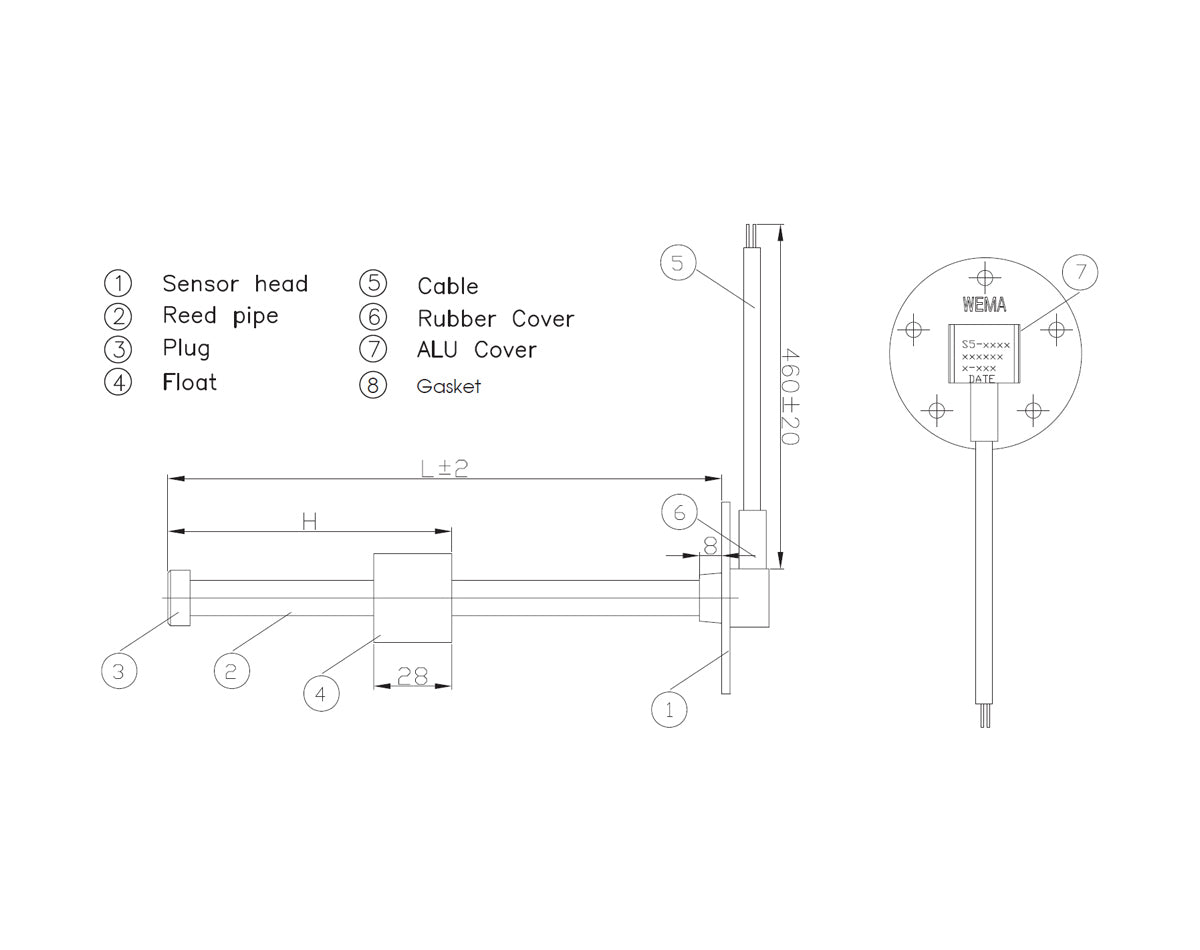

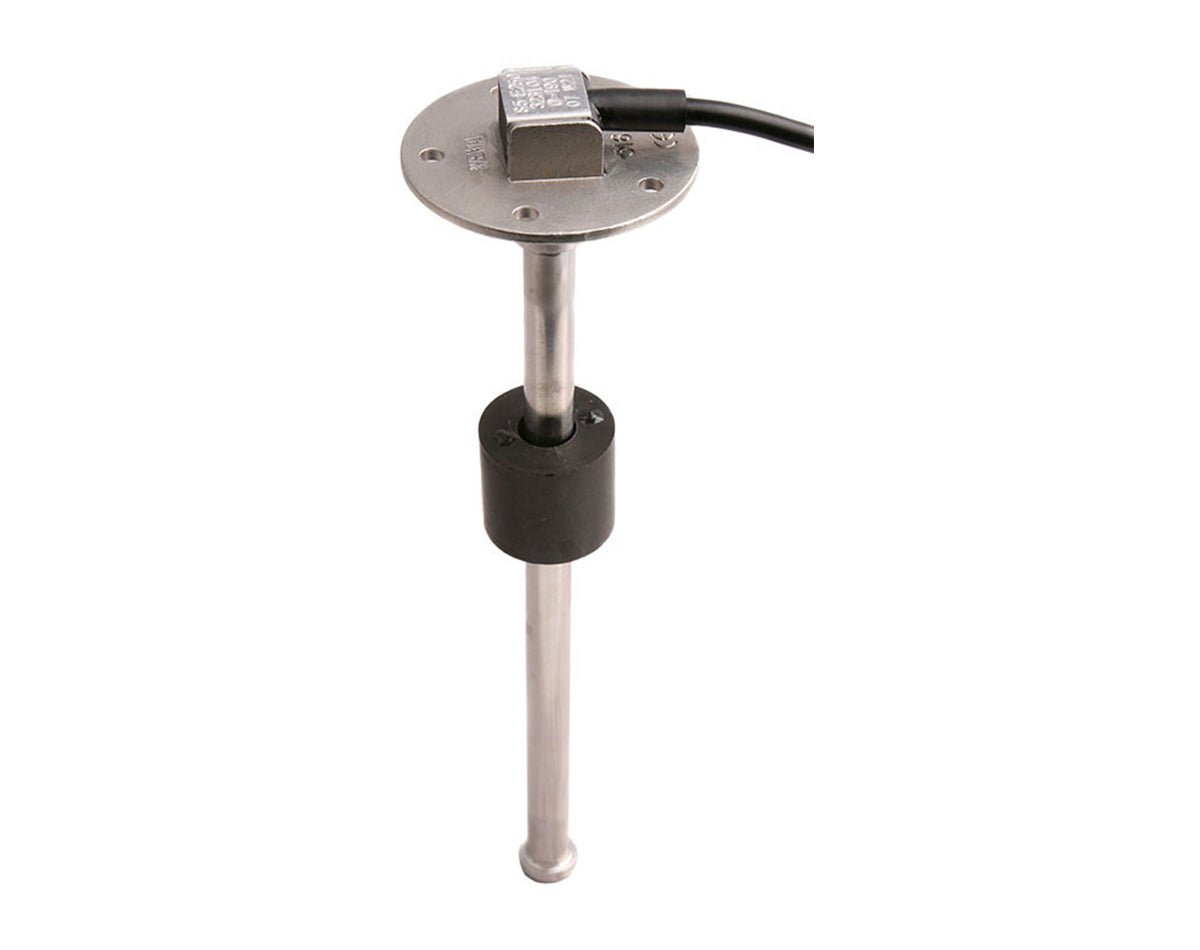

Tanks & Accessories holds 84 products, from the 75 Litre Fuel Tank with 38mm Deck Fill through to senders like the S5 700mm Tank Sender at the common 0 to 190 ohm range. Outboard covers 69 parts and accessories, Trim Tabs 64, Motor 36 and Gauges & Senders the instruments that read it all.

Matching senders, gauges and steering

Senders and gauges have to speak the same resistance range or the reading is meaningless. Most Australian and European systems use 0 to 190 ohms, while many American gauges expect 240 to 33, so check both ends before ordering either. The same care applies to steering: hydraulic helm displacement is matched to cylinder volume, and getting it wrong changes lock-to-lock turns rather than simply feeling heavy.

For the instruments that display these systems, see Marine Electrical, and Boat Maintenance covers the filters that keep fuel clean on the way from tank to engine.

What resistance range do marine fuel senders use?

Most Australian and European senders run 0 to 190 ohms, while many American-spec gauges expect 240 to 33 ohms. The gauge and sender have to match, otherwise the needle reads full, empty or somewhere unrelated to the actual level.

How do you choose a hydraulic steering helm?

Match helm displacement to cylinder volume so the boat reaches full lock in a sensible number of turns, usually between four and five. A helm that is too small for the cylinder gives heavy, slow steering; too large and the boat becomes twitchy at speed.

Do trim tabs make a difference on a small boat?

Yes. Trim tabs let you correct list from uneven load and get the hull onto the plane at lower speed, which matters most on boats that carry passengers to one side or run in chop. Tab size is set by hull length and horsepower rather than preference.

How often should engine control cables be replaced?

Inspect them annually and replace when the throttle or shift feels notchy, stiff or slow to return. Control cables corrode internally long before the outer jacket shows damage, so age and feel are better indicators than appearance.
